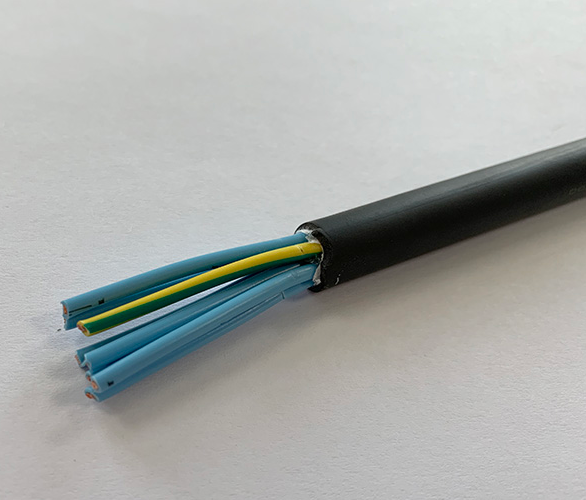

氟塑料絕緣高溫電纜AFF-200℃ 250℃
- 電 話：18855017299,13637026879
- 郵 箱：823213582@qq.com
產品描述
氟塑料絕緣高溫電纜AFF-200℃ 250℃
執行標準：企業標準.
額定電壓：600V
工作溫度：-60~+200℃/250℃
導體：絞合鍍錫或鍍銀銅線
絕緣：FEP（200℃）或PTFE（250℃）氟塑料
護套：FEP（200℃）或PTFE（250℃）氟塑料
顏色：紅、黃、藍、白、黑、棕、綠等。
產品性能：具有優良的耐腐蝕性能，抗油、強酸、強堿、強氧化劑等，具有優良的電氣絕緣性能，耐高電壓，高頻損耗小，不吸潮，絕緣電阻大；具有優良的耐燃、耐老化性能，使用壽命長。
產品技術參數
芯數×截面 （mm2） | 導體結構 根數/線徑 | 絕緣 | 護套 | 20℃時導體直流電阻（Ω/km） | ||
厚度 | 外徑 | 厚度 | 外徑 | |||
2×0.12 | 7/0.15 | 0.20 | 0.85 | 0.25 | 2.20 | 150 |
3×0.12 | 7/0.15 | 0.20 | 0.85 | 0.25 | 2.30 | 150 |
4×0.12 | 7/0.15 | 0.20 | 0.85 | 0.25 | 2.60 | 150 |
5×0.12 | 7/0.15 | 0.20 | 0.85 | 0.25 | 2.80 | 150 |
6×0.12 | 7/0.15 | 0.20 | 0.85 | 0.25 | 3.10 | 150 |
7×0.12 | 7/0.15 | 0.20 | 0.85 | 0.30 | 3.15 | 150 |
2×0.2 | 7/0.20 | 0.20 | 1.0 | 0.25 | 2.50 | 83.5 |
3×0.2 | 7/0.20 | 0.20 | 1.0 | 0.25 | 2.60 | 83.5 |
4×0.2 | 7/0.20 | 0.20 | 1.0 | 0.25 | 2.90 | 83.5 |
5×0.2 | 7/0.20 | 0.20 | 1.0 | 0.25 | 3.20 | 83.5 |
6×0.2 | 7/0.20 | 0.20 | 1.0 | 0.30 | 3.60 | 83.5 |
7×0.2 | 7/0.20 | 0.20 | 1.0 | 0.30 | 3.60 | 83.5 |
19×0.2 | 7/0.20 | 0.20 | 1.0 | 0.40 | 5.80 | 83.5 |
2×0.35 | 19/0.16 | 0.25 | 1.30 | 0.25 | 3.10 | 49.5 |
3×0.35 | 19/0.16 | 0.25 | 1.30 | 0.25 | 3.20 | 49.5 |
4×0.35 | 19/0.16 | 0.25 | 1.30 | 0.25 | 3.65 | 49.5 |
5×0.35 | 19/0.16 | 0.25 | 1.30 | 0.30 | 4.10 | 49.5 |
6×0.35 | 19/0.16 | 0.25 | 1.30 | 0.30 | 4.50 | 49.5 |
7×0.35 | 19/0.16 | 0.25 | 1.30 | 0.30 | 4.50 | 49.5 |
19×0.35 | 19/0.16 | 0.25 | 1.30 | 0.40 | 7.30 | 49.5 |
2×0.5 | 19/0.18 | 0.25 | 1.40 | 0.25 | 3.30 | 36.0 |
3×0.5 | 19/0.18 | 0.25 | 1.40 | 0.25 | 3.40 | 36.0 |
4×0.5 | 19/0.18 | 0.25 | 1.40 | 0.30 | 4.0 | 36.0 |
5×0.5 | 19/0.18 | 0.25 | 1.40 | 0.30 | 4.40 | 36.0 |
6×0.5 | 19/0.18 | 0.25 | 1.40 | 0.30 | 4.80 | 36.0 |
7×0.5 | 19/0.18 | 0.25 | 1.40 | 0.30 | 4.80 | 36.0 |
19×0.5 | 19/0.18 | 0.25 | 1.40 | 0.50 | 8.0 | 36.0 |
2×0.75 | 19/0.23 | 0.25 | 1.70 | 0.30 | 4.0 | 22.7 |
3×0.75 | 19/0.23 | 0.25 | 1.70 | 0.30 | 4.0 | 22.7 |
4×0.75 | 19/0.23 | 0.25 | 1.70 | 0.30 | 4.70 | 22.7 |
5×0.75 | 19/0.23 | 0.25 | 1.70 | 0.35 | 5.30 | 22.7 |
6×0.75 | 19/0.23 | 0.25 | 1.70 | 0.35 | 5.80 | 22.7 |
7×0.75 | 19/0.23 | 0.25 | 1.70 | 0.35 | 5.80 | 22.7 |
19×0.75 | 19/0.23 | 0.25 | 1.70 | 0.50 | 9.50 | 22.7 |
2×1 | 19/0.26 | 0.25 | 1.80 | 0.30 | 4.20 | 19.0 |
3×1 | 19/0.26 | 0.25 | 1.80 | 0.35 | 4.30 | 19.0 |
4×1 | 19/0.26 | 0.25 | 1.80 | 0.35 | 5.10 | 19.0 |
5×1 | 19/0.26 | 0.25 | 1.80 | 0.35 | 5.60 | 19.0 |
6×1 | 19/0.26 | 0.25 | 1.80 | 0.40 | 6.20 | 19.0 |
7×1 | 19/0.26 | 0.25 | 1.80 | 0.40 | 6.20 | 19.0 |
8×1 | 19/0.26 | 0.25 | 1.80 | 0.40 | 6.80 | 19.0 |
19×1 | 19/0.26 | 0.25 | 1.80 | 0.60 | 10.20 | 19.0 |
2×1.5 | 19/0.32 | 0.30 | 2.25 | 0.35 | 5.20 | 11.7 |
3×1.5 | 19/0.32 | 0.30 | 2.25 | 0.35 | 5.30 | 11.7 |
4×1.5 | 19/0.32 | 0.30 | 2.25 | 0.40 | 6.20 | 11.7 |
5×1.5 | 19/0.32 | 0.30 | 2.25 | 0.40 | 6.80 | 11.7 |
6×1.5 | 19/0.32 | 0.30 | 2.25 | 0.40 | 7.50 | 11.7 |
7×1.5 | 19/0.32 | 0.30 | 2.25 | 0.40 | 7.60 | 11.7 |
19×1.5 | 19/0.32 | 0.30 | 2.25 | 0.60 | 12.5 | 11.7 |
2×2.5 | 19/0.41 | 0.40 | 2.80 | 0.40 | 6.40 | 6.86 |
3×2.5 | 19/0.41 | 0.40 | 2.80 | 0.40 | 6.40 | 6.86 |
4×2.5 | 19/0.41 | 0.40 | 2.80 | 0.40 | 7.60 | 6.86 |
5×2.5 | 19/0.41 | 0.40 | 2.80 | 0.50 | 10.30 | 6.86 |
6×2.5 | 19/0.41 | 0.40 | 2.80 | 0.50 | 9.40 | 6.86 |
7×2.5 | 19/0.41 | 0.40 | 2.80 | 0.50 | 9.40 | 6.86 |
19×2.5 | 19/0.41 | 0.40 | 2.80 | 0.70 | 15.40 | 6.86 |
